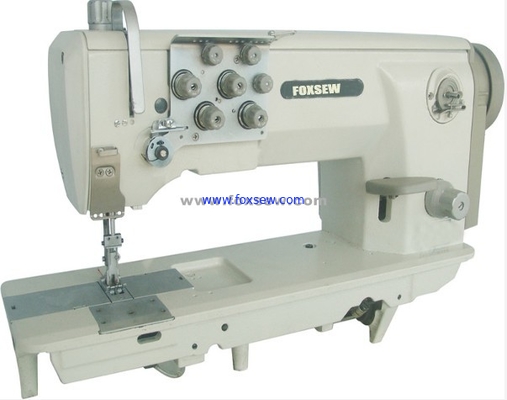

Durkopp Adler Type Heavy Duty Lockstitch Sewing Machine ( Double Needle ) FX868

  • Durkopp Adler Type Heavy Duty Lockstitch Sewing Machine ( Double Needle ) FX868
Place of Origin CHINA
Brand Name FOXSEW
Certification CE
Model Number FX868
Minimum Order Quantity 1PCS
Packaging Details CARTONS
Delivery Time 7 DAYS
Payment Terms T.T,LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Stitch Formation Lock Stitch Mechanical Configuration Flat-Bed
Type Features: This Series Is The Latest Product Of FOXSEW Brand Heavy Duty Material Lockstitch Sewing Ma
Leave a Message
Product Description

Features: This series is the latest product of FOXSEW brand heavy duty material lockstitch sewing machines. It is designed with the large vertical rotary hook, synchronous toothed belt drive. The needle bar, feed dog and presser foot synchronous feeding. It can sew the nice stitching between the medium material and thick material . The machine in the comprehensive performance of transmission light smooth, low noise, high durability, and equipped with protection hook overloaded on-off device. It is ensure that the joint products and the safety of the hook. Bobbin winder ensure the clamping thread, it can quickly start winding. Head cover and side cover can be open, convenient adjustment and maintenance of machine. This model also increase the operating space between  338 mm - 120 mm, increase the needle distance to 12 mm, needle gague3.2-50.8mm. Especially suitable for sewing the car cushion, sofa, seat belts, air bags and automotive trim the assembly, also can be used in sewing tents, parachute and other large appliance sewing.

Durkopp Adler Type Heavy Duty Lockstitch Sewing Machine ( Double Needle ) FX868 0

Specifications:



Model

FX-868

Max. Sewing Speed

2000 r.p.m

Stitch Length

0-9 mm

Needle Bar Stroke

36 mm

Thread Take-up Lever stroke

74.5 mm

Presser foot lift

By Hand: 8mm   By knee: 16 mm

Needle Type

DP*17 18#-23#

Number of Needle

2

Rotary Hook

Automatic Lubricated Large Rotary Hook

Lubrication

Automatic Lubricated

Safety clutch device

Yes

Reverse feeding device by hand

Yes

Needle Gauge

Standard: 6.4MM Special: 3.2.4.76.9.5.12.7MM

Motor

400W Clutch motor 1400R.P.M

Durkopp Adler Type Heavy Duty Lockstitch Sewing Machine ( Double Needle ) FX868 1
