Long Arm Compound Feed Heavy Duty Lockstitch Sewing Machine FX4620

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FX4620
Minimum Order Quantity	1PCS
Price	Negotiation
Packaging Details	Cartons,wooden case
Delivery Time	7days
Payment Terms	T.T,LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Max. Sewing Speed	1800 R.p.m	Stitch Length	0-9 Mm
Stitch Formation	Lock Stitch	Mechanical Configuration	Flat-Bed
Type	Long Arm Compound Feed Heavy Duty Lockstitch Sewing Machine

Leave a Message

Product Description

This model is derived form FX-4400. The long arm flat bed gives a wider working space. The presser foot can be lifted manually or by foot treadle. The bobbin winder on top an in may act according to the factory operation requirements making to order operation extra wide middle of the machine head makes the sewing operation very pours sews in front of the nose is the push button type switch easy. It features smooth machine running, low noise and machine durability, available for stitching car covers, car seats, safety belts, matt tents, parachutes, gliding parachutes, sails and other large work piece.

The FX-4620 is a heavy duty twin needle long arm lockstitch flatbed industrial sewing machine.

The long sewing machine arm allows up to 635 mm clearance to the right of the needles, which is approximately two and a half times the clearance of a standard arm machine. The solid long arm is factory cast and offers greater strength & stability when compared to a cut and piece extended arm. It features a triple feeding action by way of: bottom feed, needle feed and walking foot top feed and is fitted with two large vertically mounted hook & bases for use with medium to heavy weight materials. A safety clutch is fitted to help prevent damage to the hooks, bevel gears and other important parts, should the machine become jammed or over-loaded.

Used for: Large covers, upholstery panels, car trimmings, inflatable products, bouncy castles, awnings, tents, parachutes, gliders, hot air balloons, pool covers, sails, lorry curtain sidings, top stitching leather etc… many other large items...

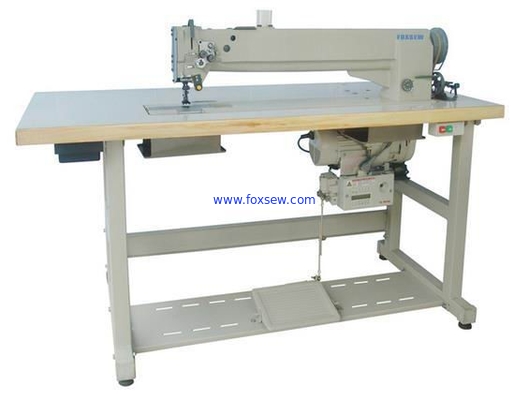

Long Arm Compound Feed Heavy Duty Lockstitch Sewing Machine FX4620 0

Specifications:

Model	FX-4600	FX-4620
Max. Sewing Speed	1800 r.p.m
Stitch Length	0-9 mm
Needle Bar Stroke	36 mm
Thread Take-up lever stroke	74.5 mm
Presser foot lift	By Hand: 8 mm By Knee: 16 mm
Needle Type	DP X17 18#-23#
Rotating Hook	Automatic Lubrication Large Hook
Lubrication	Automatic Lubricated
Safety Clutch Device	Yes
Pneumatic reverse Feeding Device	Yes
Operating Space	750x100 mm
Needle Gauge	Standard: 6.4mm
Motor	550W Servo Motor

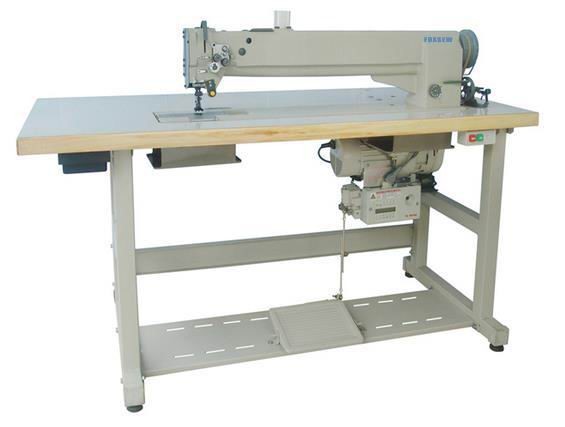

Long Arm Compound Feed Heavy Duty Lockstitch Sewing Machine FX4620 1
